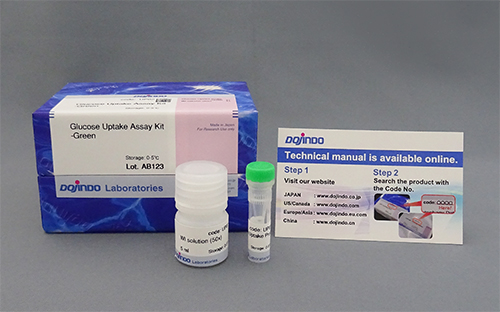

Glucose Uptake Assay Kit-Green

Glucose uptake capacity assay

Highly sensitive and simple measurement of glucose uptake capacity
Applicable for a plate reader
Reduces dye leakage after staining

Product code

UP02　 Glucose Uptake Assay Kit-Green

Unit size	--
1 set	Please inquire distributors about price.

General number of usable assays for 1 set
35 mm dish x 12 or 96-well microplate x 1

Component

1 set	Glucose Uptake Probe-Green WI Solution (50×)	×1 5 ml ×1

C of A

SDS download

Description

Nutrient metabolism is necessary for energy production in cells and regulates various cellular functions, including gene expression. Glucose is one of the key substrates for the generation of ATP and to sustain cellular homeostasis. Thus, glucose metabolism has been the subject of intense investigations. In cancer research, tumor cells enhance glucose uptake and consumption for their growth and proliferation. Therefore, elevated glucose uptake is a marker of tumors, and glucose transporters are important targets in cancer treatment. One common method for evaluating the glucose uptake ability of cells uses radioisotope-labeled glucose. Although this method has been used for many years, it requires special handling facilities and disposal of radioactive materials. The enzyme cycling method using 2-deoxy-D-glucose, which enables colorimetric and fluorometric plate assays, cannot be applied to cell imaging and flow cytometry. Recently, 2-NBDG, a fluorescently labeled glucose analog, has been used widely to detect cellular glucose uptake by fluorescence imaging and flow cytometry. However, the sensitivity of this method is poor because of the low fluorescence intensity of 2-NBDG. To resolve these limitations, a novel fluorescent probe, Glucose Uptake Probe-Green, was developed. This probe emits strong green fluorescence (λex = 507 nm, λem = 518 nm), allowing highly sensitive detection of cellular glucose uptake by fluorescence imaging, flow cytometry or microplate assay. The WI Solution in this kit enhances cellular retention of the probe to give more reliable data.

Manual

Manual

Technical info

The use of a high-fluorescence intensity dye enables higher sensitivity measurements in a shorter time than the conventional method (2-NBDG).

1. High-sensitivity determination

Uses a fluorescent dye with superior brightness, which is different from the fluorescence intensity of 2-NBDG, which decreases in water.

Deteciton conditions
Cells: A549 cells
Detection system: Fluorescence microscope
Filter set: GFP (Ex: 470/40 nm, Em: 525/50 nm)

2. Quick process

Significantly reduced measurement time despite using the same process as 2-NBDG.

The operation is very simple, requiring only three steps: pretreatment, staining (incorporation), and washing.

3. Plate reader compatibility

Supports plate reader measurements that are difficult to perform with 2-NBDG.

Deteciton conditions
Cells: A549 cells
Ex: 488 nm, Em: 520 nm

4. Reduces dye leakage after staining

The included WI Solution suppresses reagent leakage and ensures stable data acquisition.

When cells are washed with HBSS

When cells are washed with WI Solution

Deteciton conditions
Cells: A549 cells
Detection system: Fluorescence microscope
Filter set: GFP (Ex: 470/40 nm, Em: 525/50 nm)

Comparison with existing method

The comparison of the Glucose Uptake Probe Series and the existing method(2-NBDG) is as below.

product name	Fluorescence microscope	Plate reader detection	FCM detection	Retention ability	Fluorescence characteristics
Glucose Uptake Assay Kit-Blue	✓	-	✓	1 hour ^*	λex:386 nm λem:474 nm
Glucose Uptake Assay Kit-Green	✓	✓	✓	1 hour ^*	λex:507 nm λem:518 nm
Glucose Uptake Assay Kit-Red	✓	✓	✓	1 hour ^*	λex:560 nm λem:572 nm
2-NBDG	✓	-	✓	30 minutes or less ^*	λex:465 nm λem:540 nm

*Result of A549 cells, the retention time for other cell lines may be different.

Difference from Glucose Assay Kit

Difference between Glucose Uptake Assay Kit-Green and Glucose Assay Kit-WST (product code: G264)

1. Glucose Uptake Assay Kit-WST can quantify glucose consumption in cell supernatant. On the other hand, Glucose Uptake Assay Kit-Green cannot quantify glucose.

2. Glucose Uptake Assay Kit-Green can measure the difference of glucose uptake capacity in a short time, while Glucose Assay Kit-WST cannot measure the change of glucose level in a short time.

The difference between the Glucose Assay Kit-WST and this kit will be explained using the following experimental example.

The difference between the Glucose Assay Kit-WST and this kit will be explained using the following experimental example.
Example of experiment: Measurement of glucose consumption and uptake capacity of HepG2 treated with glucose uptake inhibitor (Cytochalasin B).
Flowchart of the experiment and experimental results

Experimental example: Inhibition of glucose uptake by Cytochalasin B

Using this kit, we were able to detect the inhibition of glucose uptake by the glucose transporter inhibitor Cytochalasin B in HepG2 cells with high sensitivity.

Fluorescence microscope observation

(scale bar: 50 μm)

Measurement conditions
Cells: HepG2
Medium: MEM (5.5 mmol/l Glucose)
Culture conditions: 5 µmol/l Cytochalasin B/MEM (5.5 mmol/l Glucose, 10% FBS), 37 °C, 24 h
Staining conditions: Glucose Uptake Probe/DMEM (0 mol/l Glucose) diluted by 500-fold, 37 °C, 15 min
Detection system: Fluorescence microscope
Filter set: GFP (Ex: 470/40 nm, Em: 525/50 nm)

Plate reader detection

Ex: 488 nm, Em: 520 nm

Experimental example: Enhanced glucose uptake by insulin

Using this kit, we were able to measure enhanced insulin-induced glucose uptake in adipocytes with high sensitivity.

(scale bar: 50 µm)

Measurement conditions
Cells: mouse adipocytes
Medium: DMEM (5.5 mmol/l Glucose)
Culture conditions: 1 µmol/l Insulin/DMEM (5.5 mmol/l Glucose), 37 °C, 15 min
Staining conditions: ×500 Glucose Uptake Probe/DMEM (0 mol/l Glucose), 37 °C, 15 min
Detection system: Fluorescence microscope
Filter set: GFP (Ex: 470/40 nm, Em: 525/50 nm)
Scale bar: 50 μm

Plate reader detection

Detection conditions
Ex: 488 nm, Em: 520 nm

* It is difficult to make adipocyte evenly on the wells, so there may be some error in the data.

Experimental procedure
1. Adipocytes were seeded onto ibi 96-well plates and cultured overnight.
2. The cells were washed twice with glucose-free medium DMEM, and then glucose-free medium was added.
3. The cells were incubated at 37 °C for 15 minutes.
4. Probe solution (500-fold dilution) in glucose-free medium was added, and the cells were incubated at 37 °C for 15 minutes.
5. Wash the cells three times with WI Solution (1x) chilled to 4 °C and add WI Solution (4 °C).
6. The cells were observed using a fluorescence microscope and plate reader.

Experimental example: Comparing the glucose uptake capacity of progenitor adipocytes and adipocytes

Using this kit, we were able to detect and quantify the difference in glucose uptake capacity between progenitor adipocytes and adipocytes with high sensitivity.

(scale bar: 50 µm)

Measurement conditions
Cells: preadipocyte, adipocyte
Medium: DMEM (5.5 mmol/l Glucose, 10% FBS)
Staining conditions: Glucose Uptake Probe/DMEM (0 mol/l Glucose) diluted by 500-fold, 37 °C, 15 min
Detection system: Fluorescence microscope
Filter set: GFP (Ex: 470/40 nm, Em: 525/50 nm)

Plate reader detection

Detection conditions
Ex: 488 nm, Em: 520 nm

* It is difficult to make adipocyte evenly on the wells, so there may be some error in the data.

Experimental procedure
1. Progenitor adipocytes and adipocytes were seeded onto ibi 96-well plates and cultured overnight.
2. The cells were washed twice with glucose-free medium DMEM, and then glucose-free medium was added.
3. The cells were incubated at 37 °C for 15 minutes.
4. Probe solution (500-fold dilution) in glucose-free medium was added, and the cells were incubated at 37 °C for 15 minutes.
5. Wash the cells three times with WI Solution (1x) chilled to 4 °C and add WI Solution (4 °C).
6. The cells were observed using a fluorescence microscope and plate reader.

[Flow cytometry] Example procedure: Co-staining of Glucose uptake probe-Green and markers for immunostaining

1. Wash the cells with PBS x 2
2. Stain zombie yellow
3. Incubate for 30 min at 4°C
4. Wash the cells with RPMI (1% FCS) x 2
5. Stain cell surface antibody
6. Incubate for 30 min at 4°C
7. Wash the cells with RPMI-No glucose x 2
8. Add pre-warmed RPMI (37°C), divide into five

Sample	GLUP-G	Media	GLUT inhibitor
1	-	RPMI-No glucose	-
2	+	RPMI-No glucose	-
3	+	RPMI with glucose	-
4	+	RPMI-No glucose	+
5	+	RPMI-No glucose	+

9. Incubate for 15 min at 37 °C in a CO₂ incubator
10. Centrifuge at 1,500 rpm for 5 min at r.t., remove the supernatant
11. Add pre-warmed Glucose uptake probe-Green (+/- inhibitor) for 15 min at 37 °C in a CO incubator
12. Wash with ice-cooled WI solution x 2
13. FCM analysis

Experimental Examole: Induction of Ferroptosis by Erastin

Erastin is a known inducer of ferroptosis. By inhibiting the cystine transporter (xCT), erastin inhibits the uptake of cystine. Cystine is the raw material for GSH. Therefore, Erastin ultimately decreases the amount of GSH. Decreased GSH then results in lipid peroxide accumulation and induction of ferroptosis.
The following experimental examples show changes in each aforementioned index as a consequence of erastin stimulation. Measurements are made using Dojindo reagents.

Using erastin-treated A549 cells, we measured intracellular Fe²⁺, ROS, lipid peroxide, glutathione, glutamate release into the extracellular space, and cystine uptake. As a result, inhibition of xCT by elastin was observed and also the release of glutamate and uptake of cystine were decreased. Furthermore, elastin treatment decreased intracellular glutathione while it increased intracellular Fe²⁺ , ROS, and lipid peroxides.

1 Amino Acid Uptake	: Amino Acid Uptake Assay Kit (Code: UP04)
2 Glucose Uptake	: Glucose Uptake Assay Kit-Green (Code: UP02)
3 Cystine Uptake	: Cystine Uptake Assay Kit (Code: UP05)
4 Intracellular glutathione	: GSSG/GSH Quantification Kit (Code: G257)
5 Intracellular labile Fe	: FerroOrange (Code: F374)
6 Intracellular total ROS	: ROS Assay Kit -Highly Sensitive DCFH-DA- (Code: R252)
7 Lipid Peroxides	: Liperfluo (Code: L248)

Cell Line: A549
Incubation Conditions: 100 μmol/l Erastin/MEM, 37℃, 3h

References

Open References

No.	Sample	Publication
1)	Cell (HeLa)	W. Islam, Y. Matsumoto, J. Fang, A. Harada, T. Niidome, K. Ono, H. Tsutsuki, T. Sawa, T. Imamura, K. Sakurai, N. Fukumitsu, H. Yamamoto, H. Maeda., "Polymer-conjugated glucosamine complexed with boric acid shows tumor-selective accumulation and simultaneous inhibition of glycolysis ", Biomaterials., 2021, 269, (-), 120631.
2)	Bacteria (B. licheniformis; P. stutzeri)	M. Jiang, Q. Li, S. Hu, P. He, Y. Chen, D. Cai, Y. Wu, S. Chen, "Enhanced aerobic denitrification performance with Bacillus licheniformis via secreting lipopeptide biosurfactant lichenysin", 2022, doi:10.1016/j.cej.2022.134686.

Q & A

Q Does Glucose Uptake Probe-Green have selectivity for the type of glucose transporter?: A

No. Glucose Uptake Probe-Green is thought to be taken up by cells via multiple glucose transporters. However, there are no detailed data on the selectivity and affinity of this probe for glucose transporters.

Q Which cell lines have been analysed with this kit?

We have tested the kit in the following cell lines.

Cell lines
Human alveolar basal epithelial adenocarcinoma cells	A549
Human hepatoma-derived cells	HepG2
Progenitor adipocytes	Preadipocytes (3T3-L1)
Adipocytes	Adipocytes (3T3-L1)
Malignant melanoma	MO5
Mouse myoblasts	C2C12
Mouse myotube	C2C12
Astrocytoma	U-251 MG
Human cervical cancer-derived cells	HeLa
Lewis lung cancer-derived cells	3LL
T cells	CD4⁺ T cell
Macrophage-like cells	J774.1
Nematode	N2

Q Do you have results in different cell types to determine appropriate concentrations or incubation times for the glucose uptake probe in experiments?

Cell line		Dilution factor of probe stock solution	staining time	Inhibitors or experimental conditions
Human alveolar basal epithelial adenocarcinoma cells	A549	x 500	15 min	Phloretin, WZB117
Human hepatoma-derived cells	HepG2	x 500	15 min	Cytochalasin B
Preadipocytes	preadipocyte(3T3-L1)	x 500	15 min	Differentiation to adipocytes
Adipocytes	adipocyte(3T3-L1)	x 500	15 min	Insulin
Mouse myotube	C2C12	x 500	15 min	Insulin
Human cervical cancer-derived cells	HeLa	x 500	15 min	2-DG, glucosamine
Lewis lung cancer-derived cells	3LL	x 50,000	15 min	A drug inhibiting glycolysis
T cell	CD4⁺ T cell	x 500, x5,000	15 min	Deficiency of glycolytic enzymes

Q What should I do if competitive inhibition of cellular probe uptake by glucose is not possible?: A

Competitive inhibition may not occur depending on the expression level and type of glucose transporter in each cell. (Example: HepG2 cells).

In such cases, pretreatment with 2-deoxyglucose (2-DG) may provide a difference in glucose competitive inhibition.
Please refer to the example using the Glucose Uptake Assay Kit-Green (product code: UP02).

Inhibition of the Probe uptake by 2-DG pretreatment and glucose competitive inhibition (HepG2 cells)

1. Cells were seeded in dishes or microplates and cultured overnight in a 5% CO₂ incubator (37°C).
2. After removal of Medium [DMEM (10% FBS, High-glucose)], 50 mmol/l 2-DG/Medium was added and
  cells were incubated in a 5% CO₂ incubator (37°C) for 2 hours.
3. Wash the cells twice.
4. Pre-warmed DMEM (Glucose-free, serum-free) was added and the cells were incubated in a 5% CO₂
    incubator (37°C) for 15 min.
5. After the supernatant was removed, pre-warmed probe solution was added and incubated in a 5% CO₂
    incubator (37°C) for 15 min.
6. After removal of the supernatant, the cells were washed twice with cooled WI Solution (1x).
7. After removal of the supernatant, ice-cold WI Solution (1x) was added and incubated at room temperature
    for 5 minutes.
8. After removal of the supernatant, ice-cold WI Solution (1x) was added.
9. The cells were observed under a fluorescence microscope.

Q What should I do if the sensitivity of measurement using Glucose Uptake Probe-Green is low?: A

Please consider the probe concentration (×250 to ×1,000) and staining time (15 minutes to 1 hour) as initial considerations.

Q Is Glucose Uptake Probe-Green degraded and metabolized after uptake into the cell?: A

The glucose moiety may undergo phosphorylation by hexokinase owing to its structure, but no further metabolism is expected to occur.

Q After Glucose Uptake Probe-Green is incorporated into cells, can the cells be fixed?: A

No. Glucose Uptake Probe-Green leaks from inside the cells after fixation.

Q What type of microplate should be used for cell culture?: A

Please use a black microplate for cell culture.

Q Can I save the Probe working solution?: A

No, the Probe working solution cannot be stored. The Probe Stock solution can be stored -20 ^oC for 1 month.

Q What should I do if the fluorescence background is high?: A

Please optimize the staining time and dilution factor of the Probe with reference to the following ranges.

Probe dilution concentration: ×250 to ×1,000

Staining time: 15 to 60 minutes.

There is a possibility that Glucose Uptake Probe-Green remains in the extracellular region. Therefore, please wash the cells again with WI Solution.

Q Does Glucose Uptake Probe-Green have any cytotoxicity?: A

Glucose Uptake Probe-Green has no cytotoxicity within the range of manual use. Using our product Cell Counting Kit-8 (product code CK04), we measured the cytotoxicity of this probe in A549 cells.

Q How long is the probe retained in the cells after washing with WI Solution?: A

The Probe is retained in the cells for about 1 hour at room temperature in WI Solution. Please note that the retention time may vary depending on the cell type.

Q Can the Glucose Uptake Assay Kit-Green be used to quantify glucose in the culture medium or in cells?: A

No, please use our product Glucose Assay Kit-WST (product code G264).

Q Is it possible to quantify Glucose Uptake Probe-Green taken up into cells?: A

No, this kit measures the fluorescence intensity of the probe taken up into the cell as an indication of the glucose uptake capacity of the cell.
