Redefine the ROS Research

Topics

What is the Difficluty of ROS Detection?

Reactive oxygen species (ROS) are mainly produced in mitochondria during ATP synthesis. ROS plays an essential role in signaling pathways and the immune system, but excess ROS is associated with diseases and cellular senescence. DCFH-DA is widely used for ROS detection, but it has some limitations, such as weak fluorescence signals in cells, leakage from cells after staining, and photo-oxidation phenomena during observation1). High data variability, high fluorescent background, and self-oxidation by observation light are the major challenges in ROS detection. Especially the self-oxidation may cause a false response, however Dojindo Laboratories' ROS Assay Kit -Photo-oxidation Resistant DCFH-DA- can solve these problems perfectly.


1) M. Afzal, et al.,"Method to overcome photoreaction, a serious drawback to the use of dichlorofluorescin in evaluation of reactive oxygen species" BBRC2003304, 619–624.

Compare Dojindo's Total ROS Assay Kits with Others

A comparison of Dojindo Laboratories' probe and other probes for ROS detection.

  Dojindo Laboratories Company T
Code R253 R252 - -
Product Name

ROS Assay Kit
Photo-oxidation Resistant DCFH-DA-

ROS Assay Kit
-Highly Sensitive DCFH-DA-

Probe D Probe C

Photo-oxidation
Resistant

★★★★★
The highest resistant ability

-
Without resistant ability

-
Without resistant ability

-
Without resistant ability

Cell fixation

★★★★★
The highest retention ability

-
Without retention ability

-
Without retention ability

★★★
OK for fixation

Sensitivity
(Intracellular)

★★★★
Better sensitivity

★★★★★
The highest sensitivity

★★★
Ordinary sensitivity

★★★
Ordinary sensitivity

1. ROS Assay Kit - Photo-oxidation Resistant DCFH-DA

Resistant to Photo-oxidation

Unstimulated HeLa cells were stained with regular DCFH-DA or Photo-oxidation Resistant DCFH-DA and observed with excitation light every 5 minutes for fluorescence imaging.

Compatible with Immunostaining

After adding hydrogen peroxide, HeLa cells were stained with Photo-oxidation resistant DCFH-DA and mitochondrial marker Tom 20. As a result, the intracellular ROS level and mitochondrial morphology were clearly observed at the same time, which is very difficult for the existing ROS probe.

2. ROS Assay Kit - Highly Sensitive DCFH-DA

Super High-Sensitive ROS Detection

Comparison of Sensitivity: Microscope



Hydrogen peroxide (H2O2)-treated HeLa cells (1×104 cells/ml) were stained with DCFH-DA or the ROS Assay Kit-Highly Sensitive DCFH-DA, and the detectability of intracellular ROS was compared between two detection kits.  Results indicated that the ROS Assay Kit-Highly Sensitive DCFH-DA was better at high-sensitivity detection of intracellular ROS than regular DCFH-DA in high-sensitivity detection of intracellular ROS was better than DCFH-DA.

Ex: 450-490 nm, Em: 500-550 nm (GFP filter), Scale bar: 50 μm



 Comparison of Sensitivity: Plate reader

In Lipopolysaccharide (LPS)-treated RAW 264.7 cells, after being stained with regular DCFH-DA, Highly Sensitive DCFH-DA, or Photo-oxidation Resistant DCFH-DA, the intracellular ROS levels were compared. The results showed that the Dojindo Laboratories’ probes could detect intracellular ROS with higher sensitivity.

Ex: 490 – 520 nm, Em:  510 – 540 nm

Compare Dojindo's Mitochondrial ROS Detection Dye with Others

MitoBright ROS Deep Red has higher superoxide selectivity than Company T's existing product Red.

In addition, MitoBright ROS Deep Red has a special fluorescence spectrum (λex: 540 nm, λem: 670 nm), making it possible to co-staining with mitochondrial membrane potential reagent (JC-1, code: MT09, TMRE, MT-1, code: MT13), which is difficult for others mitochondrial superoxide reagent.

  MitoBright ROS Deep Red Company T's product Red
Appearance Solid Solid
Live cell staining
Fixation after staining NA NA
Fluorescence property λex : 540 nm , λem : 670 nm λex : 510 nm , λem : 580 nm



Company T's product Red tends to localize to DNA in cells, but MitoBright ROS Deep Red does not localize to DNA. This is because MitoBright ROS does not have the ability to bind to DNA. This avoids false positives due to binding to DNA and allows for more accurate observation of mitochondrial superoxide.

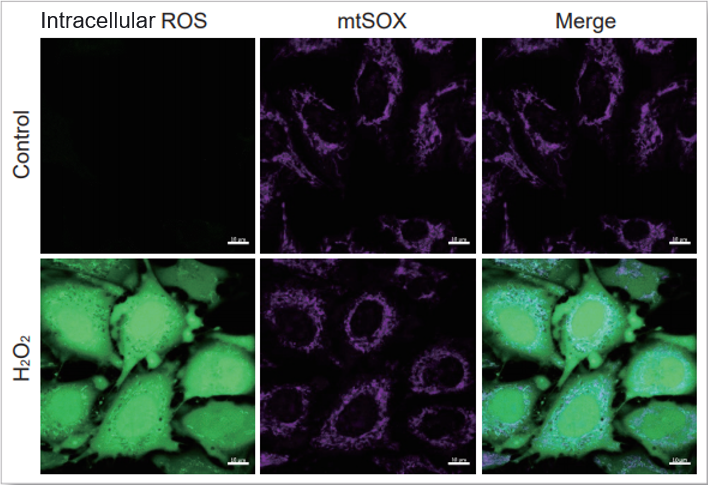

Experimental Example: Simultaneously evaluation of mitochondrial superoxide and intracellular total ROS

HeLa cells were washed with HBSS and co-stained with MitoBright ROS Deep Red - Mitochondrial Superoxide Detection and ROS Assay Kit -Highly Sensitive DCFH-DA- (Total ROS detection), and separately treated with mitochondrial superoxide inducer Antimycin or hydrogen peroxide. As a result, intracellular total ROS and mitochondrial superoxide were observed separately.



General Protocol

Treated with H2O2



Treated with Antimycin

<Imaging Conditions>(Confocal microscopy)
Intracellular ROS: Ex = 488, Em = 490-520 nm
MitoBright ROS: Ex = 633 nm, Em = 640-700 nm
Scale bar: 10 μm



Experimental Example: Time lapse imaging of ROS in LPS-treated macrophages

In ROS Assay Kit -Photo-oxidation Resistant DCFH-DA- stained RAW264.7 cells, after LPS (Lipopolysaccharide)-treated, the intracellular ROS level was simultaneously observed with a fluorescence microscope. The fluorescence intensity graph showed that, after 10 hours of LPS-treated, the intracellular ROS level was significantly increased.

Video


Intracellular ROS(Photo-oxidation Resistant DCFH-DA Dye): GFP Filter (Ex = 450 - 490 nm, Em = 500 - 550 nm)

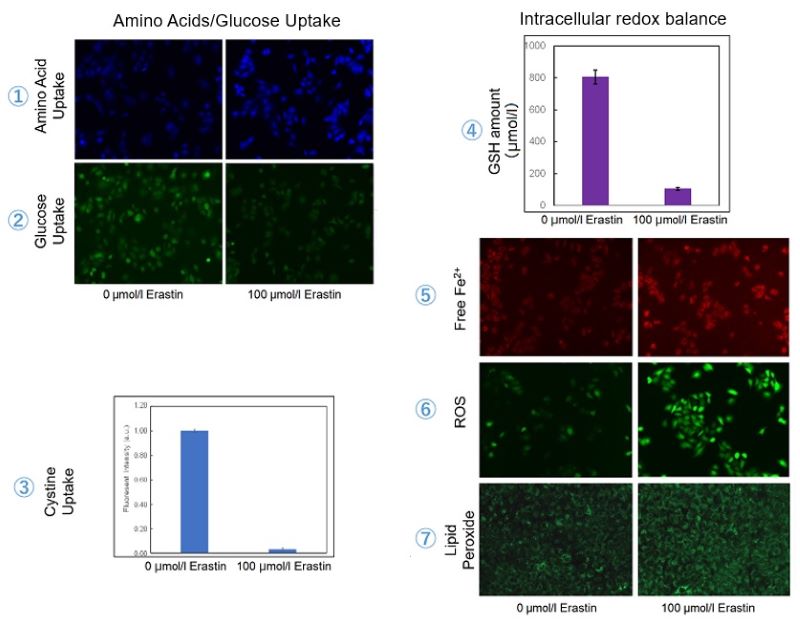

Experimental Example: Disruption of cystine balance changes nutrients uptake and redox level

Cystine/glutamate antiporter (xCT) is frequently overexpressed in human cancers and promotes cystine uptake and glutathione biosynthesis*. This results in protection from oxidative stress and ferroptosis, a type of programmed cell death dependent on iron and characterized by the accumulation of lipid peroxides. We, therefore, treated A549 cells with erastin to inhibit xCT before evaluating intracellular uptake and redox balance

Pranavi Koppula, et. al., Cancer Commun., 38:12 (2018)



As a result, we were able to get three conclusions:
・To compensate for the loss of cystine, the uptake of amino acids increased.
・The decrease in glucose uptake suggests that metabolic reprogramming may have taken place.
・The decrease in glutathione would have increased Fe2+, ROS, and Lipid peroxides – all hallmarks of Ferroptosis.





Related Products

Product

Unit

Code

Cystine Uptake Assay Kit

20 tests/100 tests

UP05-10/UP05-12

Amino Acid Uptake Assay Kit

20 tests/100 tests

UP04-10/UP04-12

Glucose Uptake Assay Kit-Blue

100 tests

UP01-10

Glucose Uptake Assay Kit-Green

20 tests/100 tests

UP02-10

Glucose Uptake Assay Kit-Red

100 tests

UP03-10

GSSG/GSH Quantification Kit

200 tests

G257-10

FerroOrange

1 tube/3 tubes

F374-10/F374-12

ROS Assay Kit -Highly Sensitive DCFH-DA-

100 tests

R252-10

MitoBright ROS Deep Red - Mitochondrial Superoxide Detection 100 nmol x1/100 nmol x 3 MT16-10/MT16-12

Liperfluo

50 µg x 5

L248-10
